What Is a Dry Mix Concrete Batching Plant?
A dry mix concrete batching plant weighs aggregates, cement, fly ash, water, and additives, then discharges the measured materials into a concrete mixer truck. The final mixing happens inside the truck drum during or after loading.

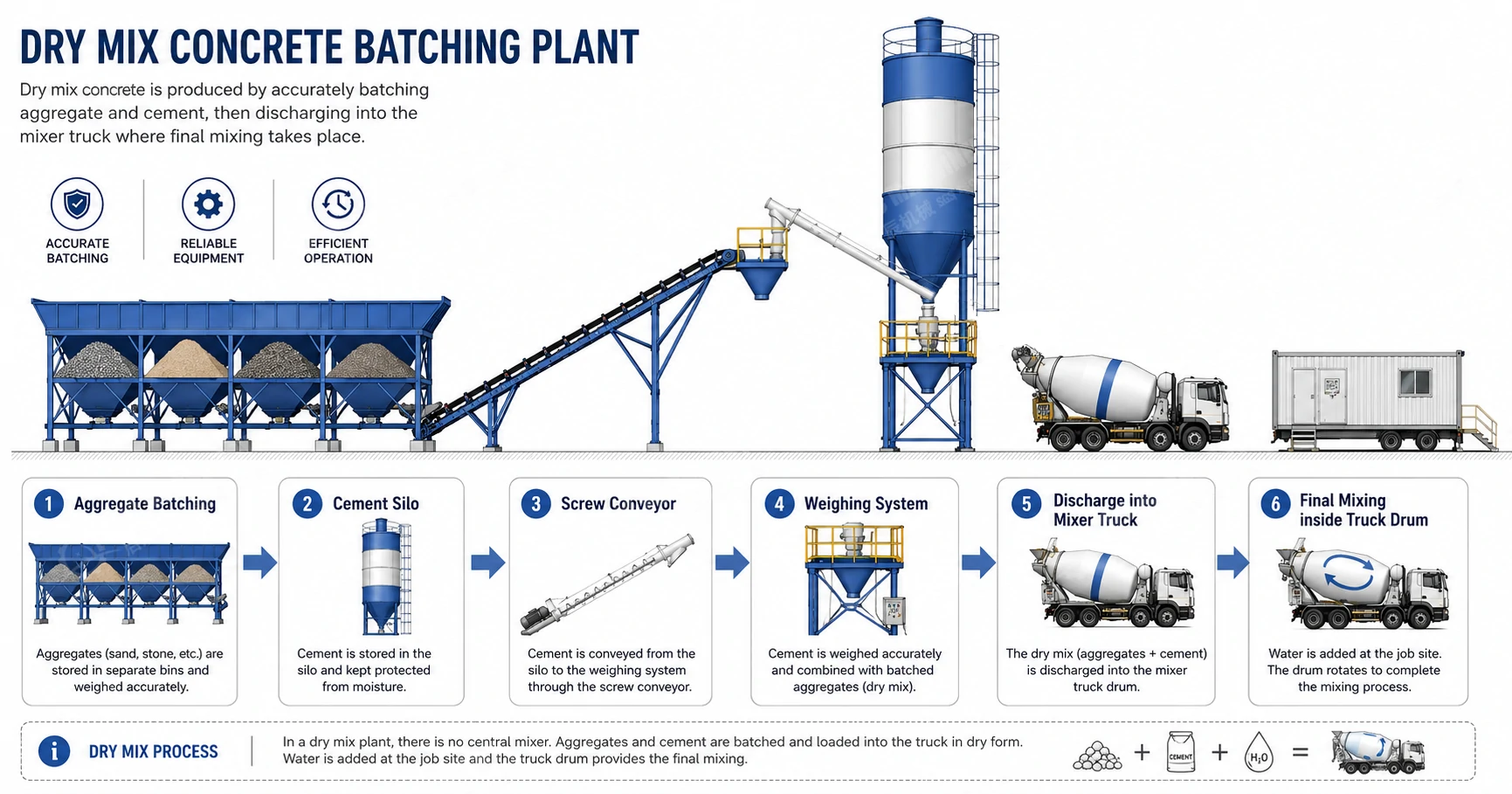

Unlike a central mixing plant, a dry mix plant does not rely on a large central concrete mixer to complete the final concrete mixing process before discharge. Its core process is:
- 1. Aggregates are batched by the aggregate batching system.
- 2. Cement or powder is stored in a cement silo.
- 3. Powder is transferred by a screw conveyor.
- 4. Materials are weighed according to the production formula.
- 5. Measured materials are discharged into the mixer truck.
- 6. Water and additives are controlled according to the required concrete condition.
- 7. Final mixing is completed inside the truck drum.
This structure makes dry mix plants attractive for projects where mixer trucks are already part of the production and delivery plan.
A dry mix concrete batch plant and a dry batch concrete plant usually refer to the same production route: materials are batched at the plant, while final mixing depends mainly on the concrete mixer truck.
What Is a Ready Mix Concrete Batching Plant?
A ready mix concrete batching plant is designed to prepare concrete for delivery to construction sites. In many project discussions, “ready mix” is connected with stronger plant-side control, because the plant is responsible for batching, quality control, dispatch planning, and concrete delivery coordination.
Depending on the configuration, ready mix production may use central mixing before discharge, truck mixing after batching, or a combination of plant-side batching and truck delivery management. For practical equipment selection, the important question is simple:
Do you need the plant to control more of the mixing result before the truck leaves, or can your project manage final mixing mainly through mixer trucks?
Some projects also compare this topic as dry mix vs wet mix concrete batching plant or dry batch plant vs central mix plant. In those comparisons, the practical question is still the same: how much mixing control should happen at the plant before dispatch?
Dry Mix vs Ready Mix Concrete Batching Plant Comparison
| Factor | Dry Mix Concrete Batching Plant | Ready Mix Concrete Batching Plant |
|---|---|---|
| Final mixing location | Inside the mixer truck drum | More plant-side control, depending on configuration |
| Central mixer | Usually not required | Often used when stronger mixing control is required |
| Plant structure | Simpler | More complete production and quality-control setup |
| Equipment investment focus | Lower central mixing equipment cost | Higher focus on controlled production and consistency |
| Loading speed | Fast truck loading can be an advantage | Loading depends on plant layout and mixing process |
| Concrete consistency | Depends more on truck drum speed, water control, mixing time, and transport distance | Usually easier to control before dispatch when central mixing is used |
| Maintenance focus | Less central mixer cleaning and wear | More attention to mixer maintenance and plant-side systems |
| Truck requirement | Mixer truck management is critical | Mixer trucks are still required for delivery, but the plant may control more before dispatch |
| Better for | Projects with reliable mixer trucks, simpler plant structure, and flexible delivery | Commercial ready-mix supply, stricter slump control, repeatable concrete quality, and larger delivery planning |
| QIC Machinery recommendation | Use when your project can manage truck mixing and delivery timing well | Use when your project needs stronger plant-side control and quality repeatability |
When Should You Choose a Dry Mix Concrete Batching Plant?
Choose a dry mix concrete batching plant when your project fits most of these conditions:
- Your site already uses mixer trucks for concrete delivery.
- Your project wants a simpler batching plant structure.
- Your team can manage truck drum speed, mixing time, and water control.
- Your concrete delivery distance is suitable for truck mixing.
- Your project needs fast loading and flexible dispatch.
- Your site does not require heavy central mixer cleaning work.
- Your main concern is a practical batching and truck-loading system, not maximum plant-side mixing control.
For this type of project, QIC Machinery can review the batching layout, truck loading route, silo quantity, aggregate storage plan, and delivery preparation before recommending a suitable concrete batching plant configuration.
For projects searching for a dry mix concrete batching plant supplier or dry mix concrete batch plant manufacturer, the useful first step is not asking for a generic price list. It is confirming whether the plant structure, mixer truck plan, silo quantity, and delivery route match your production target.
When Should You Choose a Ready Mix Concrete Batching Plant?
Choose a ready mix concrete batching plant when your project needs stronger control before concrete leaves the plant.
This is especially important when:
- Your project serves multiple construction sites.
- Your concrete slump needs to be more repeatable.
- Your production plan requires stable output every working day.
- Your project has stricter quality inspection requirements.
- Your concrete application is sensitive to mixing uniformity.
- Your delivery distance or waiting time may affect concrete condition.
- Your operation needs a more complete production, dispatch, and service plan.
If your concrete quality depends heavily on repeatable strength, slump, and production control, a ready mix configuration may be a safer direction than a basic dry mix setup.
Why the Mixing Location Matters
The main difference between dry mix and ready mix selection is where the final mixing risk is controlled.
With a dry mix plant, the batching system can weigh materials accurately, but the final concrete result still depends on the mixer truck. If the truck drum speed is not suitable, the mixing time is too short, the water is not controlled well, or the delivery route is too long, the final concrete may not perform as expected.
With a ready mix configuration that uses stronger plant-side mixing control, more of the concrete condition can be checked before dispatch. This does not remove the need for delivery management, but it reduces dependence on truck mixing alone.
That is why a dry mix plant should not be selected only because it looks simpler. It should be selected when your project conditions match the truck-mixing method.
Cost Factors: Is a Dry Mix Concrete Batching Plant Cheaper?
A dry mix concrete batching plant can reduce investment in central mixing equipment because it usually does not require a large central mixer. It may also reduce central mixer cleaning and maintenance work.
However, the total cost should not be judged only by plant price. You should also consider:
- Mixer truck quantity and condition
- Truck drum mixing performance
- Aggregate batching accuracy
- Cement silo quantity
- Screw conveyor configuration
- Site layout and truck circulation route
- Installation requirements
- Spare parts planning
- Power supply
- Transport distance and dispatch control
If your project needs many mixer trucks, stricter quality control, or longer delivery routes, a low central-equipment investment may not automatically mean lower total operating cost.

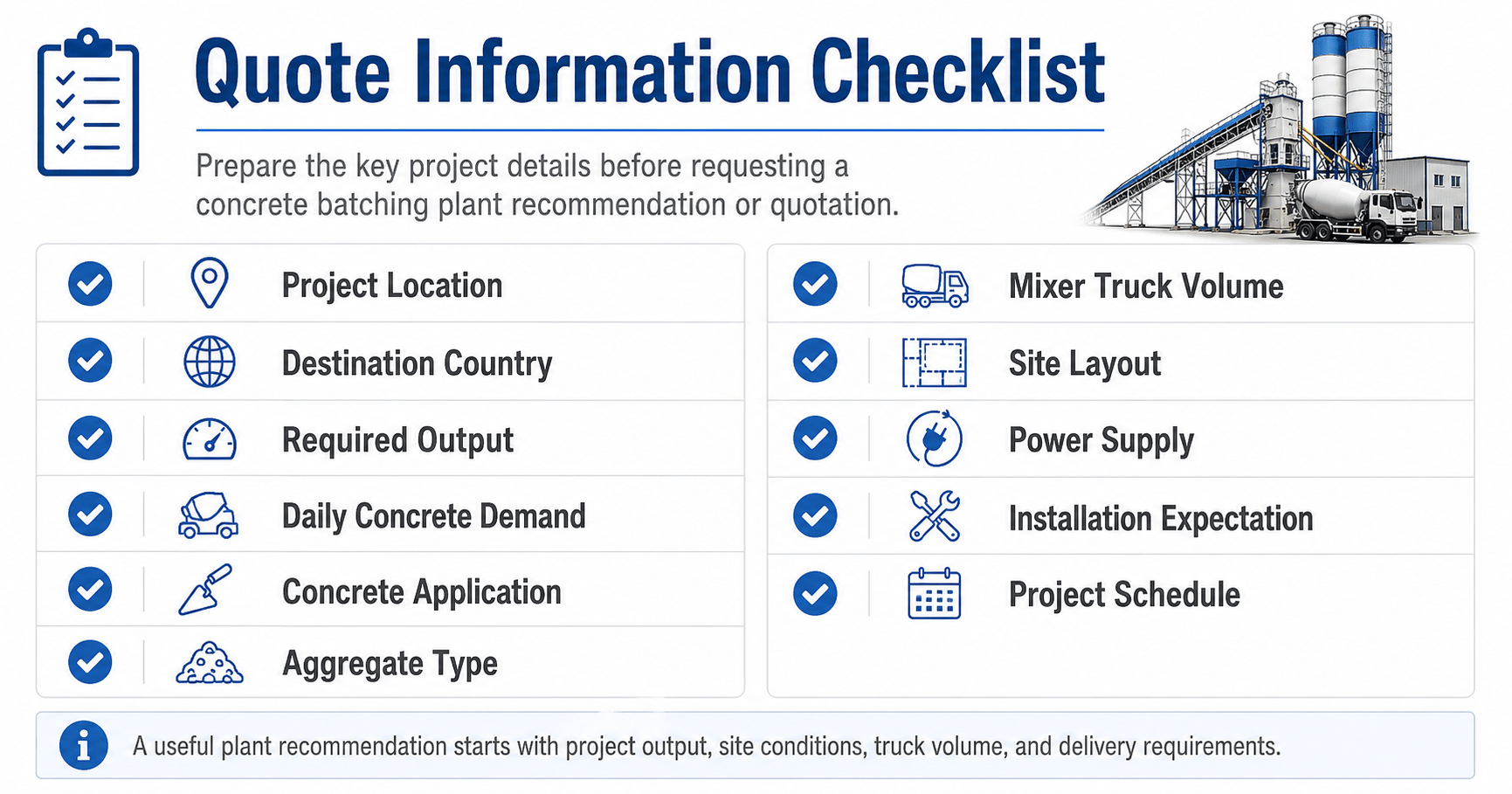

Configuration Checklist Before Requesting a Quote
Before asking for a dry mix or ready mix plant recommendation, prepare the following information:
| Information | Why It Matters |
|---|---|
| Project location and destination country | Helps review shipping, voltage, installation, and service planning |
| Required output | Determines plant capacity and batching system size |
| Daily concrete demand | Helps estimate whether production planning is stable or intermittent |
| Concrete application | Different applications may need different consistency and control |
| Aggregate type and size | Affects batching system and storage design |
| Cement silo quantity | Affects powder storage and continuous production planning |
| Mixer truck volume | Critical for dry mix loading and final mixing |
| Site layout and available land | Affects truck circulation, storage, and installation layout |
| Power supply | Affects motor and control system selection |
| Installation expectation | Helps plan foundation, commissioning, and support needs |
This information allows QIC Machinery to compare dry mix and ready mix options according to your real project conditions instead of giving a generic equipment suggestion.
QIC Machinery Support and Factory Proof
QIC Machinery provides concrete batching plant selection support based on equipment configuration, delivery preparation, and long-term service planning. The company has over 30 years of production and sales experience, a 25,000 m3 manufacturing facility, and equipment supply experience in more than 100 countries and regions.
For a project review, QIC Machinery can provide factory inspection references, container loading records, shipping coordination, and after-delivery service communication according to project requirements.
If your project needs to compare dry mix and ready mix configurations, you can also review factory videos and delivery records or check concrete batching plant cases when suitable public references are available.
Common Selection Mistakes
Mistake 1: Choosing dry mix only because the plant looks simpler
A simpler plant can be a good advantage, but only when your mixer trucks, dispatch plan, and water control are suitable.
Mistake 2: Ignoring mixer truck condition
For dry mix production, the mixer truck is not just a delivery vehicle. It is part of the final mixing system.
Mistake 3: Treating ready mix as one fixed machine type
Ready mix production is a supply model and production requirement. The final equipment configuration still depends on output, concrete quality requirements, plant layout, and delivery plan.
Mistake 4: Asking for price before defining capacity
Price is affected by capacity, silo quantity, batching system, control system, shipping requirements, and installation conditions. A useful quotation starts with project information.
Final Recommendation
Choose a dry mix concrete batching plant if your project needs a simpler batching and truck-loading system, and if your mixer trucks can reliably complete final mixing.
Choose a ready mix concrete batching plant if your project needs stronger plant-side control, more repeatable concrete quality, and a more complete production and dispatch process.
If you are not sure which direction fits your site, contact QIC Machinery with your project location, destination country, required output, daily concrete demand, concrete application, aggregate condition, mixer truck volume, site layout, power supply, installation expectation, and project schedule. QIC Machinery will help review a suitable equipment configuration and delivery preparation plan.
